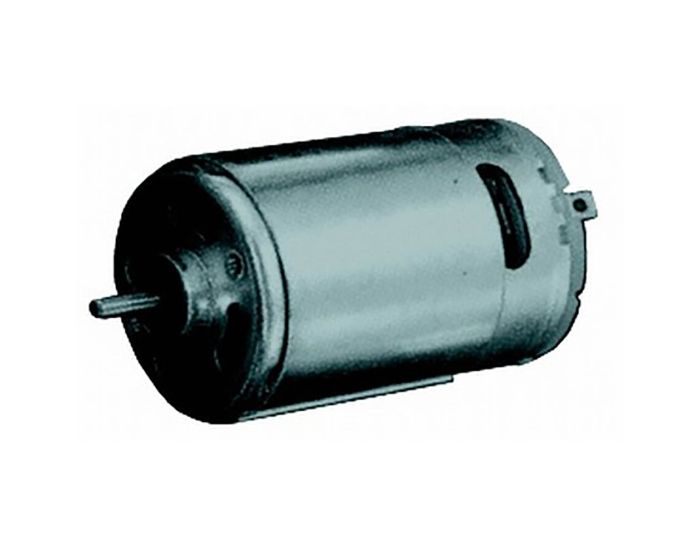

ELECTRIC MOTOR 6VDC 9000RPM 80G/CM
ELECTRIC MOTOR 6VDC 9000RPM 80G/CM
Code : 7118832
Contact Us
Each motor briefly described below is a quality product with hardened drive shaft, sintered bearings and quality commutator brushes etc
$9.50
VIP
More Information
| Units of Measure | EACH |
|---|---|
| Availability | Contact Us |
| Features | They are ideal for any application where a compact high torque and reliable motor is required Ideal for hobbyist, experimenters, robotics, replacement, etc NO LOAD Torque (G.CM):60 |
Specifications
| Speed (RPM) | 13500 |
|---|---|
| Current (AMP) | 0.55 AT STALL |
| Torque (G.CM) | 191 |
| Current (AMP) | 5.6 AT MAX EFFICIENCY |
| Efficiency(%) | 49.6 |
| Power (W) | 5.96 |
| Speed (RPM) | 9679 |
| Current (AMP) | 2 AT MAX POWER |
| Output (W) | 6.44 |
| Speed (RPM) | 7845 |
| Torque (G.CM) | 80 |
| Current (AMP) | 2.6 DIMENSIONS |
| Diameter | 27.6mm |
| Total Length | 51mm |
| Shaft Length | 12.5mm |
| Shaft dia | 2.3mm |
| Mounting thread dia | 2.6mm |
